Item description: I388R

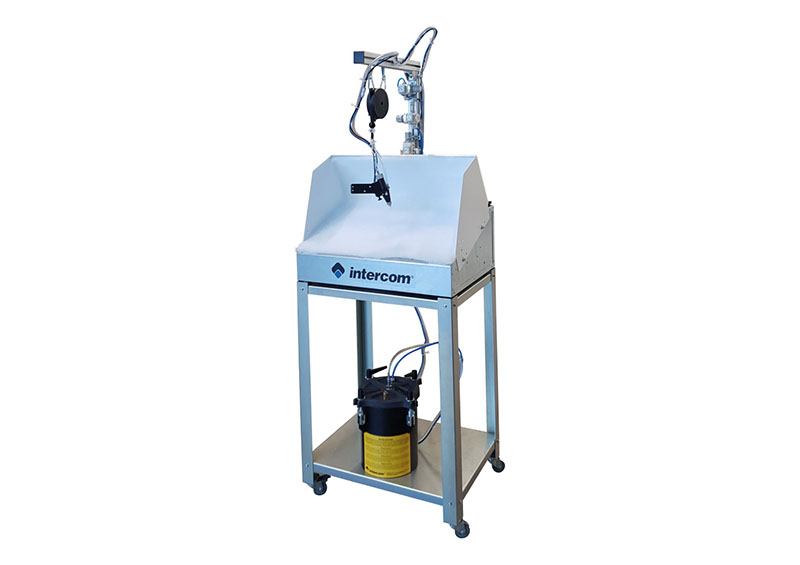

The machine is composed by:

- Vacuum bench placed on base with wheels with adjustable height for an easy displacement inside the factory and equipped with a silent and powerful engine to contain even more the nebulized adhesive.

- Spray gun G6 designed for both precise and large areas bonding. In particular it is possible to spray the glue from a minimum of 3 mm up to a maximum of 50 mm.

- Stainless steel tank 10 lt. capacity treated with non-stick Teflon.

The spray gun is held up by an equalizer for making it easy to handle.

It can be set going manually by pressing a lever or through a pedal so to leave the operator's hands free.

The operator, after starting the machine, can place the materials on the working plane so to make maximum use of the intake on the working plane for both keeping the materials standing and absorbing the nebulized adhesive.

All the spray gun functions can be adjusted: quantity of adhesive, width of jet and quality of distribution even on different thicknesses.

For a proper functioning of the vacuum bench it is recommended to replace the filter each time is visibly dirty or when the vacuum bench is not intaking properly.

A jet of air immediately before and after the adhesive nebulization keeps the nozzle constantly clean.

Our systems are maintenance free.

The tank is conceived in a way that allow the use of the adhesive in bag in box avoiding to make dirty the tank and to filter the glue thus preventing the contact with air which can alter its properties.


Capacity m3/h: 800Volt: 230Prevalence: 70Hertz: 50
Watt: 36Bar exercise: 6Decibel (dB): 63.3Ampere: 0.31/0.36
Air lt/min: 30Effective width cm: 60Usable depth cm: 37Average consumption:
Gross Weight kg: 43.300Tare Kg: .000Length mt: 0.63Height mt: 0.82
Net Weight kg: 43.300mt Width: 0.55Volume m3: 0.284
